TS-AC80
1、承载80KG;
2、外形简约重量轻;
3、带有机械式防掉落结构,即使机器人侧本体意外断气,与工具侧本体也不会分离;
4、采用无接触的吸合方式;
5、具备凸轮夹紧、放松及位置检测功能;
6、主要用于搬运、装配、弧焊、冲压、去毛刺、点胶涂装等行业。
Features
1、Payload80kg;
2、Small size and light weight;
3、Even if the air is accidentally cut off, the robot side and the tool side will not separate by the mechanical anti-drop structure.separate by the mechanical anti-drop structure.
4、Adopt non-contact suction method;
5、With cam gripping, loosening and in-position detection functions。
6、Mainly used in handling, assembly, arc welding,Stamping, deburring, dispensing and other industries
规格 SPECIFICATIONS | |||||||
型号Model | 机器人侧 Robot side | TS-AC80-R | |||||
工具侧 Tool side | TS-AC80-T | ||||||
承重 Payload capacity | 80kg | ||||||
容许力矩 Allowable moment Bending direction(Tx.Ty) | 550Nm(5612kgf·cm) | ||||||
容许转矩 Allowable moment Torque direction(Tz) | 780Nm(7959kgf·cm) | ||||||

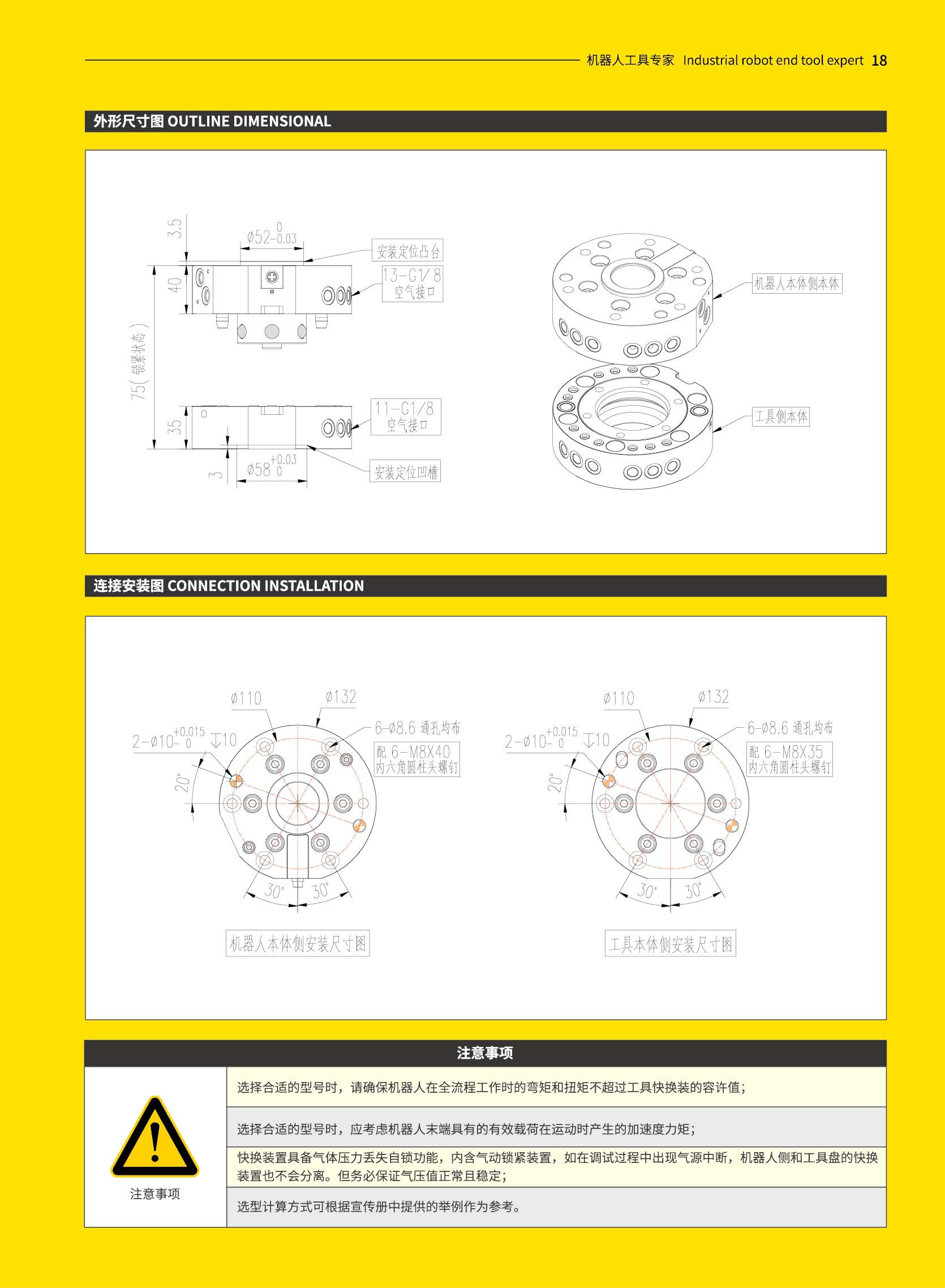

外形尺寸 Housing diameter | φ132mm | ||||||
连接时厚度 Combined profile | 75mm | ||||||
本体材质 Main body material | 铝合金 Aluminum alloy | ||||||
锁紧机构材质 Locking mechanism material | 合金钢 Steel alloy | ||||||
位置重置精度 Position repeatability | ±0.02mm | ||||||
锁紧方式 Locking mechanism | 钢球锁紧 Locking steel ball | ||||||
工作驱动压力 Air pressure for Working | 0.39~0.7Mpa (4~7kg/cm²) | ||||||
本体重量 Weight | 机器人侧 Robot side | 1.94kg | |||||
工具侧 Tool side | 1.20kg | ||||||

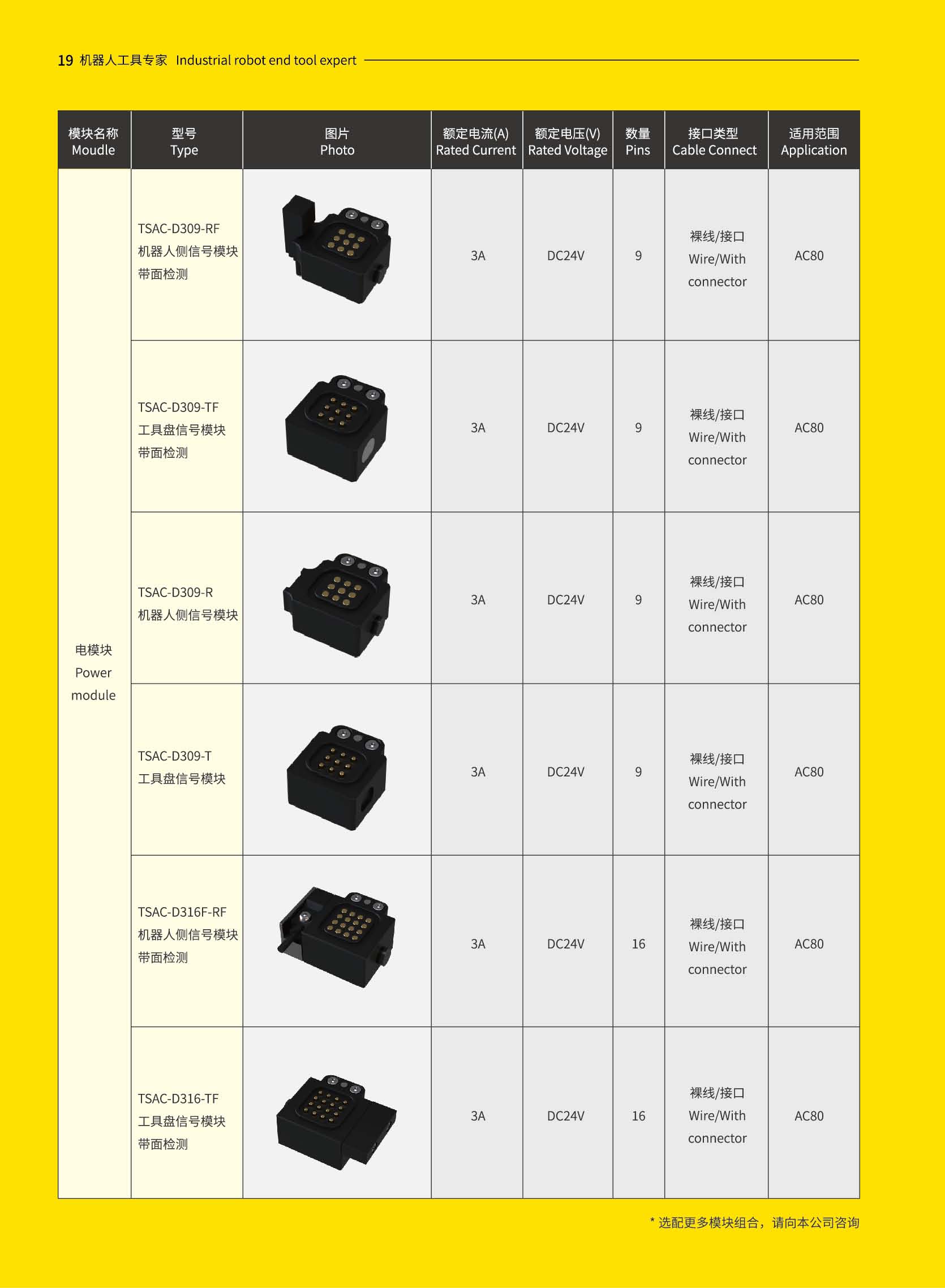

电子信号 Electrical signal | 电流值 Current | 3A | |||||

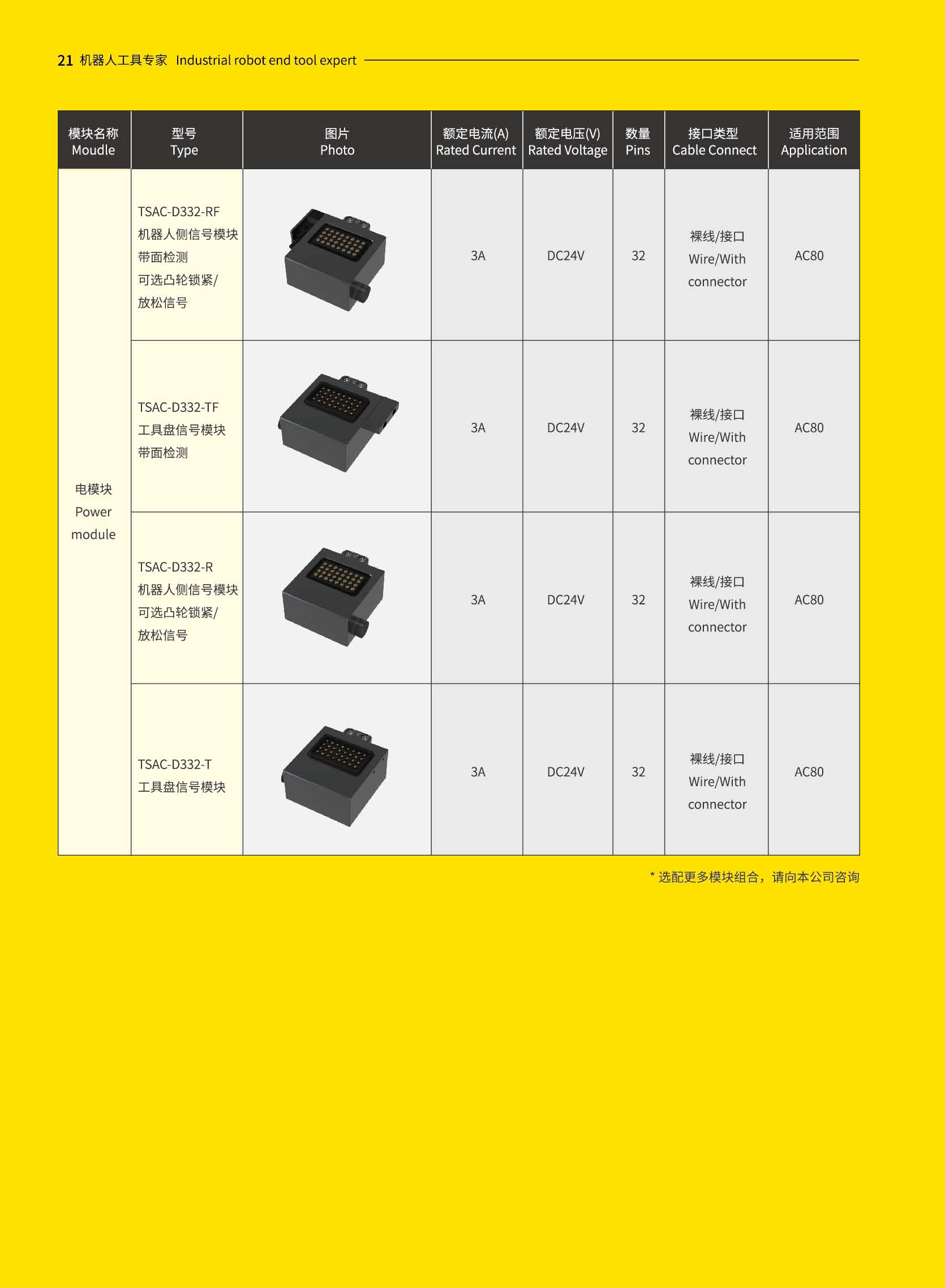

标准芯数 Standard quantity | 9/16/24/32针 9/16/24/32pins | ||||||
空气出口 Pneumatic Port | 本体出口数 Quantity | 11个G1/8 11 ports G1/8 | |||||
有效截面积 Effective cross section | 12mm² | ||||||
输送信号 Output signal | 凸轮打开 Chuck | 具备 Have | |||||
凸轮收起 Unchuck | 具备 Have | ||||||
连接确认 Face signal | 选配 Optional | ||||||
环境 Surrounding Condition | 使用温度 Temprature | 0~58°(无冻结 No freeze) | |||||
使用湿度 Humidity | 95% (无结露 No condensation) |
