TS-AC360
1、承载360KG;
2、采用高强度的本体;
3、带有机械式防掉落结构,即使机器人侧本体意外断气,与工具侧本体也不会分离;
4、采用钢球锁紧方式;
5、内置抓紧、松开、在位检测装置;
6、主要用于搬运、冲压、点胶、涂装等行业。
7、尤其针对汽车行业焊装行业,搬运、点焊、电阻焊等。
Features
1、Payload capacity 360kg;
2、High rigid body;
3、Even if the air is accidentally cut off, the robot side and the tool side will not separate by the mechanical anti-drop structure.
4、Steel ball lock system;
5、Built-in grip, release, in-position detection device
6、Mainly used in handling, Stamping, dispensing and other industries
7、Especially for the welding, handling, spot welding industry of the automotive industry, etc.
规格 SPECIFICATIONS | |||||||
型号Model | 机器人侧 Robot side | TS-AC360-R | |||||
工具侧 Tool side | TS-AC360-T | ||||||
承重 Payload capacity | 360kg | ||||||
容许力矩 Allowable moment Bending direction(Tx.Ty) | 3580Nm(36500kgf·cm) | ||||||
容许转矩 Allowable moment Torque direction(Tz) | 3750Nm(38200kgf·cm) | ||||||

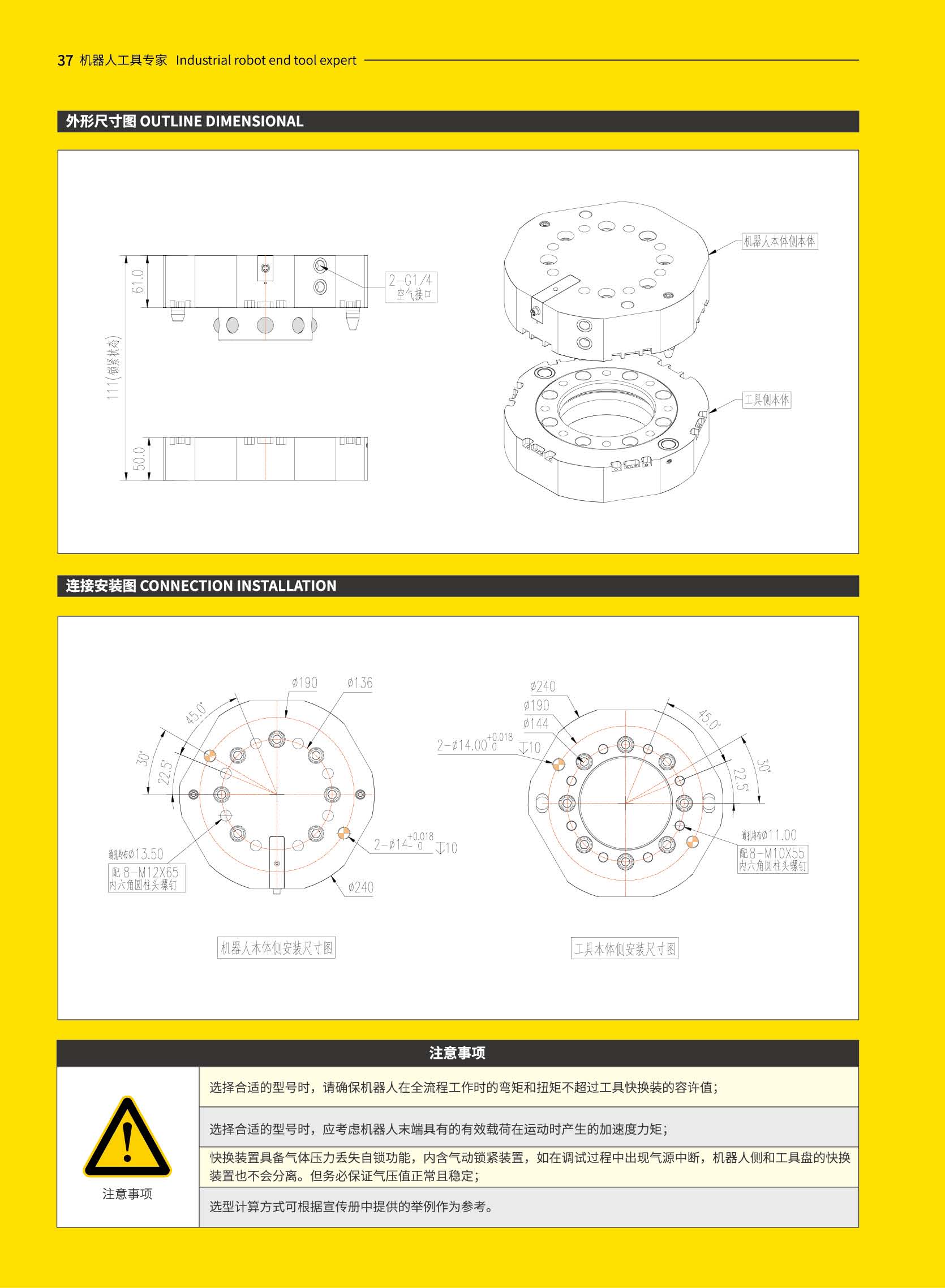

外形尺寸 Housing diameter | φ 240 mm | ||||||
连接时厚度 Combined profile | 111 mm | ||||||
本体材质 Main body material | 铝合金 Aluminum alloy | ||||||
锁紧机构材质 Locking mechanism material | 合金钢 Steel alloy | ||||||
位置重置精度 Position repeatability | ±0.02mm | ||||||
锁紧方式 Locking mechanism | 钢球锁紧 Locking steel ball | ||||||
工作驱动压力 Air pressure for Working | 0.39~0.75Mpa (4~7kg/cm²) | ||||||
本体重量 Weight | 机器人侧 Robot side | 9.8 kg | |||||
工具侧 Tool side | 6.5kg | ||||||

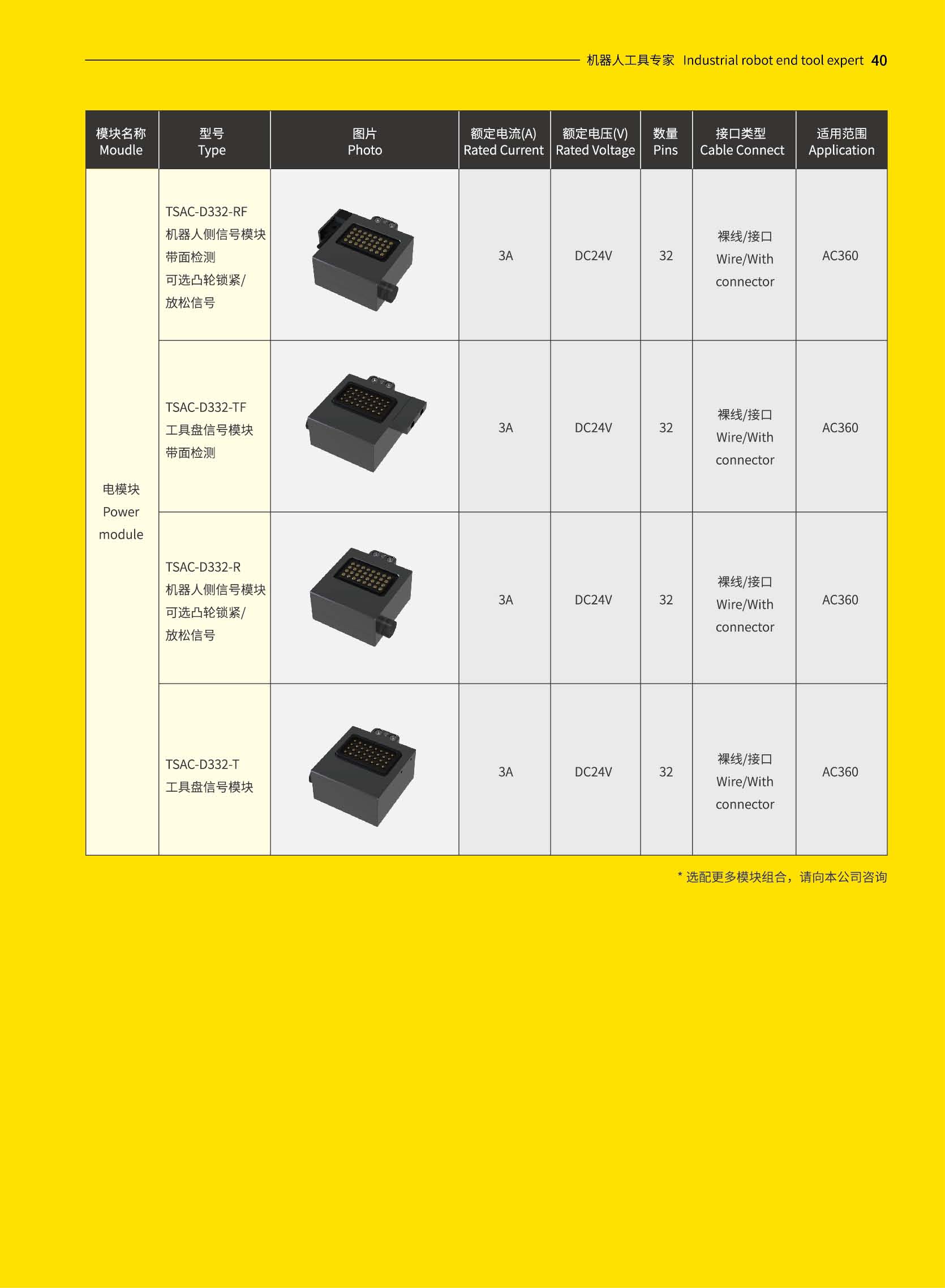

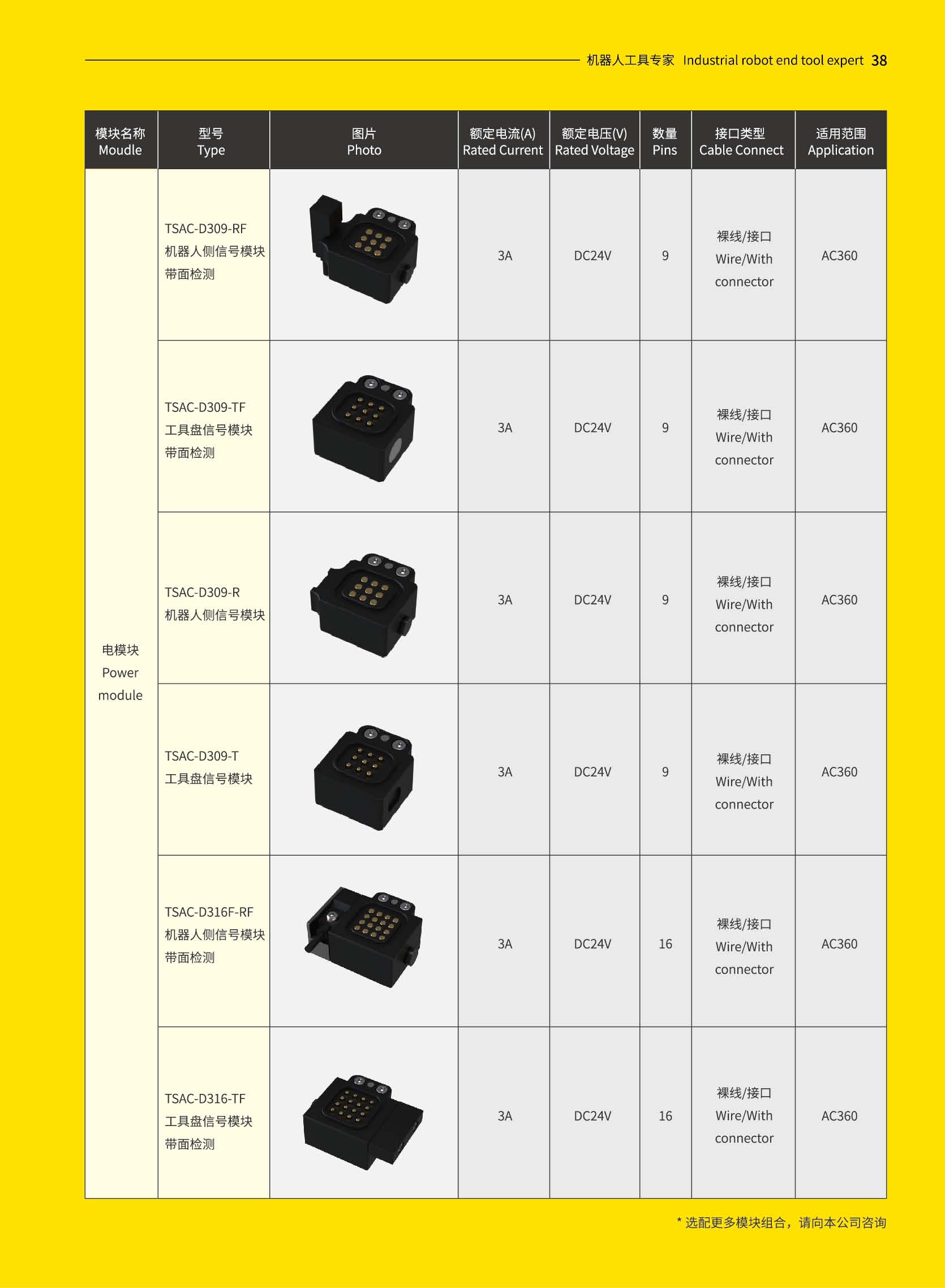

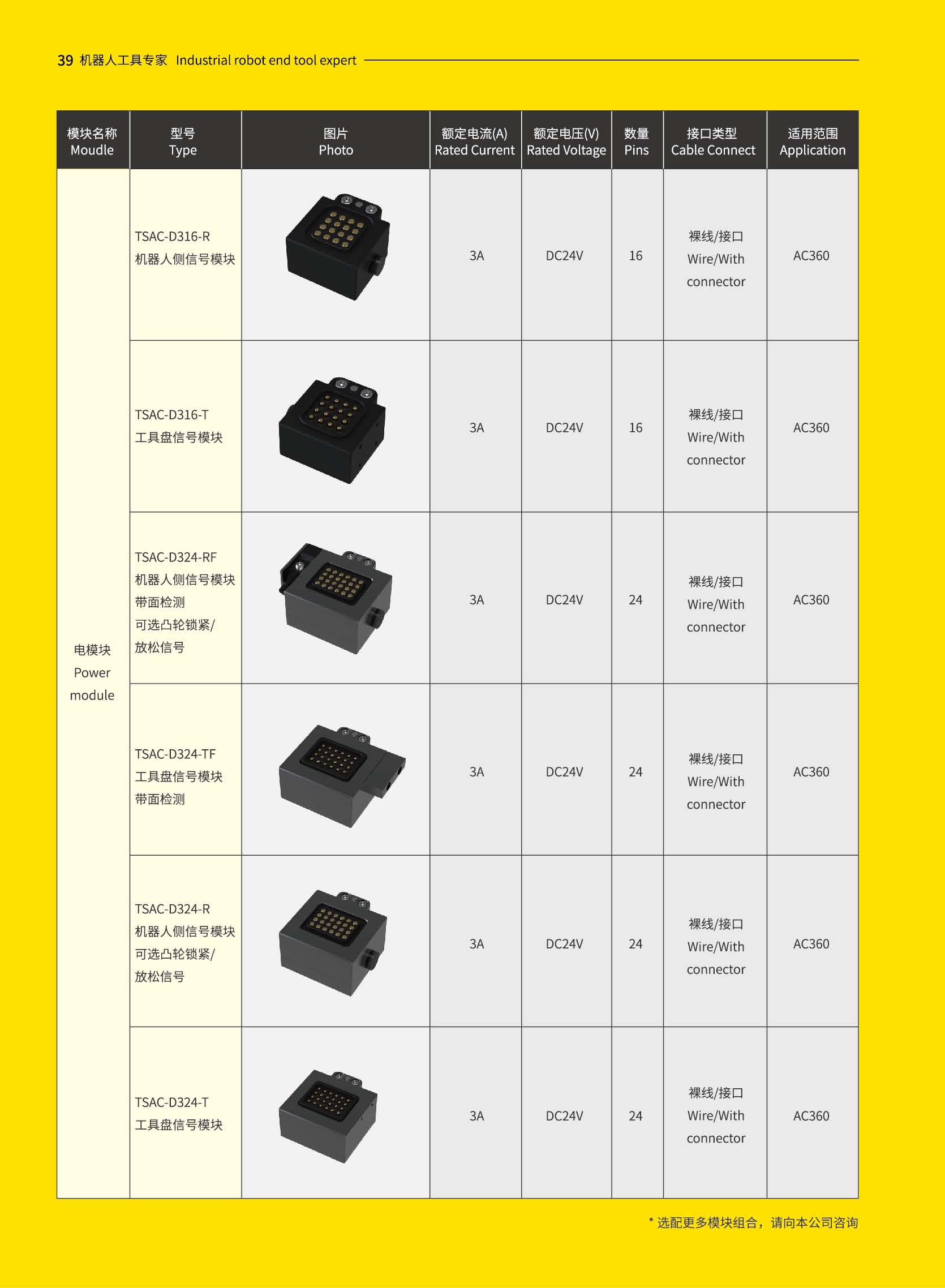

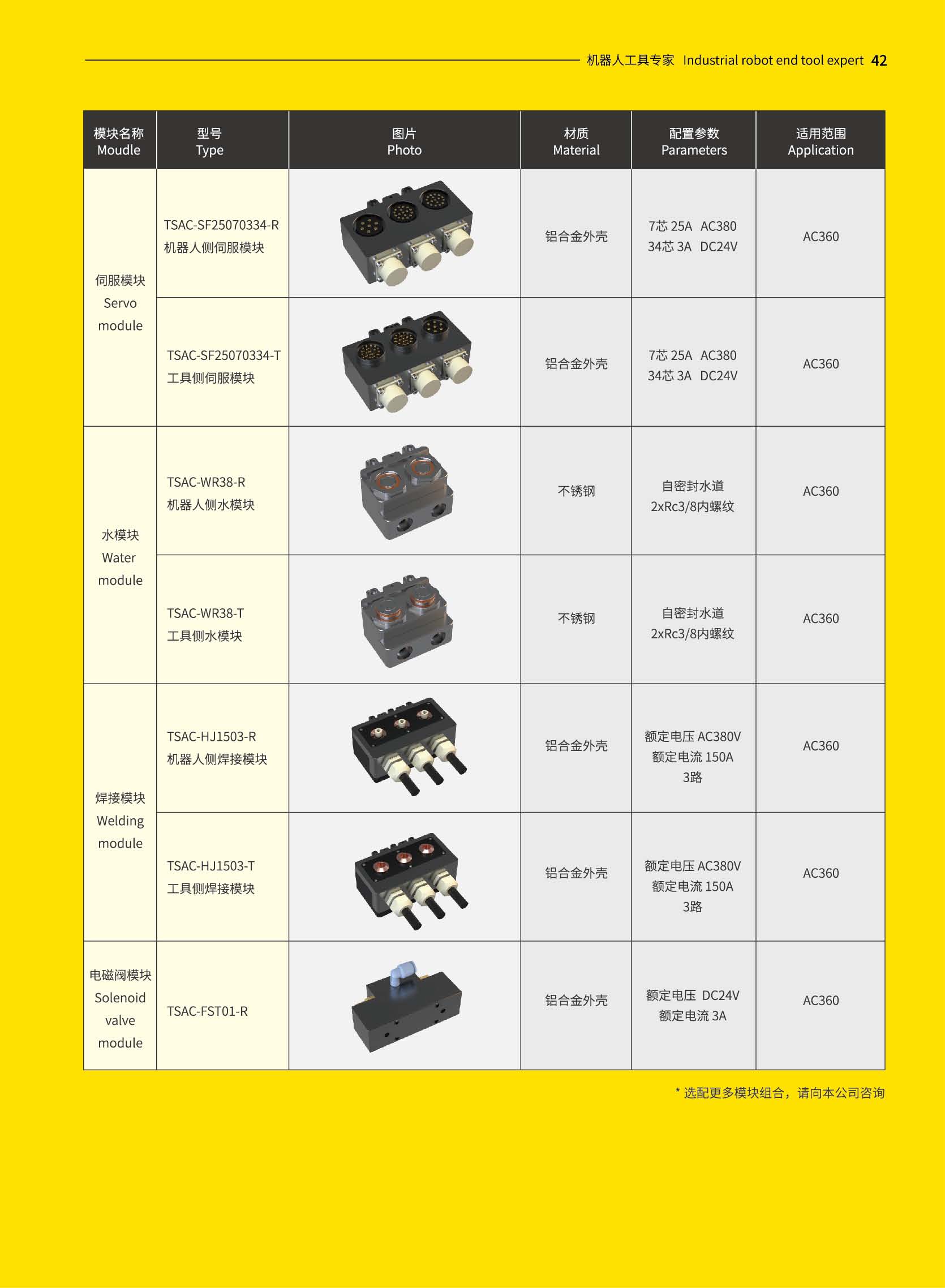

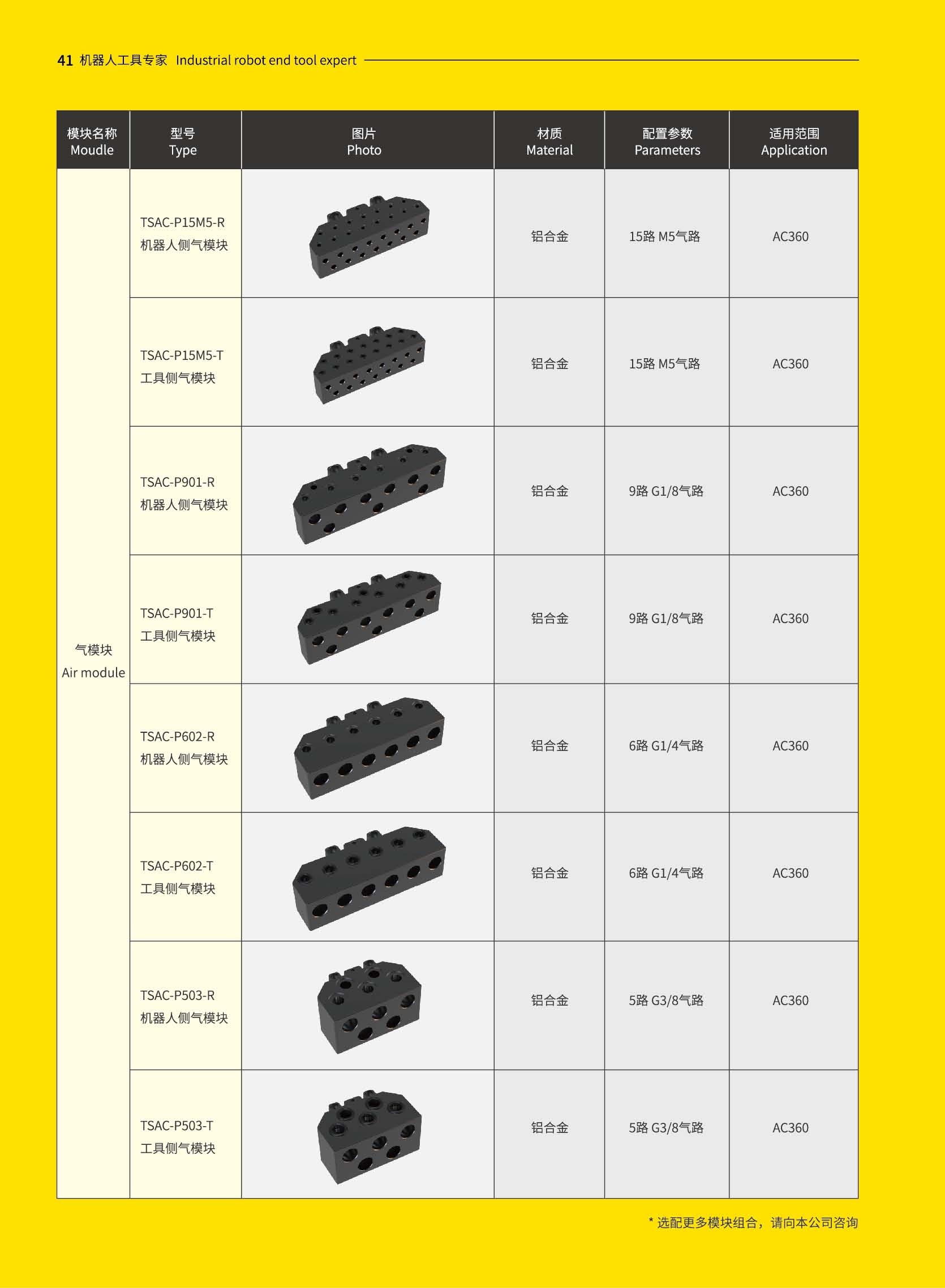

电子信号 Electrical signal | 电流值 Current | 3A | |||||
芯数 Quantity | 9/16/24/32针 9/16/24/32pins | ||||||
空气出口 Pneumatic Port | 本体出口数 Own quantity | 无 No | |||||
有效截面积 Effective cross section | 无 No | ||||||
输送信号 Output signal | 凸轮打开 Chuck | 具备 Have | |||||
凸轮收起 Unchuck | 具备 Have | ||||||
连接确认 Face signal | 选配 Optional | ||||||
环境 Surrounding Condition | 使用温度 Temprature | 0~58°(无冻结 No freeze) | |||||
使用湿度 Humidity | 95% (无结露 No condensation) |
