TS-AC700
1、承载700KG;
2、插入式信号连接模块,大大提高了伺服编码信号的稳定性;
3、采用高强度的本体;
4、带有机械式防掉落结构,即使机器人侧本体意外断气,与工具侧本体也不会分离;
5、采用钢球锁紧方式;
6、配备连接、分离感应装置和防脱结构确保安全性;
7、主要用于大型抓手、焊枪、高负载工具的交换。
8、尤其针对汽车行业焊装行业,搬运、点焊、电阻焊等。
Features
1、Payload capacity 700kg;
2、Plug-in signal connection module, greatly improve the stability of servo coded signal.
3、High rigid body ;
4、Even if the air is accidentally cut off, the robot side and the tool side will not separate by the mechanical anti-drop structure.
5、Steel ball lock system;
6、Equipped with connection, separate sensing device and anti-separation structure for safety
7、Change of large-sized material handling tools change of large-sized welding guns change of various tools witn heavy load
8、Main application are welding transportation,resistance welding and so on.
规格 SPECIFICATIONS | |||||||
型号Model | 机器人侧 Robot side | TS-AC700-R | |||||
工具侧 Tool side | TS-AC700-T | ||||||
承重 Payload capacity | 700kg | ||||||
容许力矩 Allowable moment Bending direction(Tx.Ty) | 6970Nm(71122kgf·cm) | ||||||
容许转矩 Allowable moment Torque direction(Tz) | 6000Nm(61224kgf·cm) | ||||||

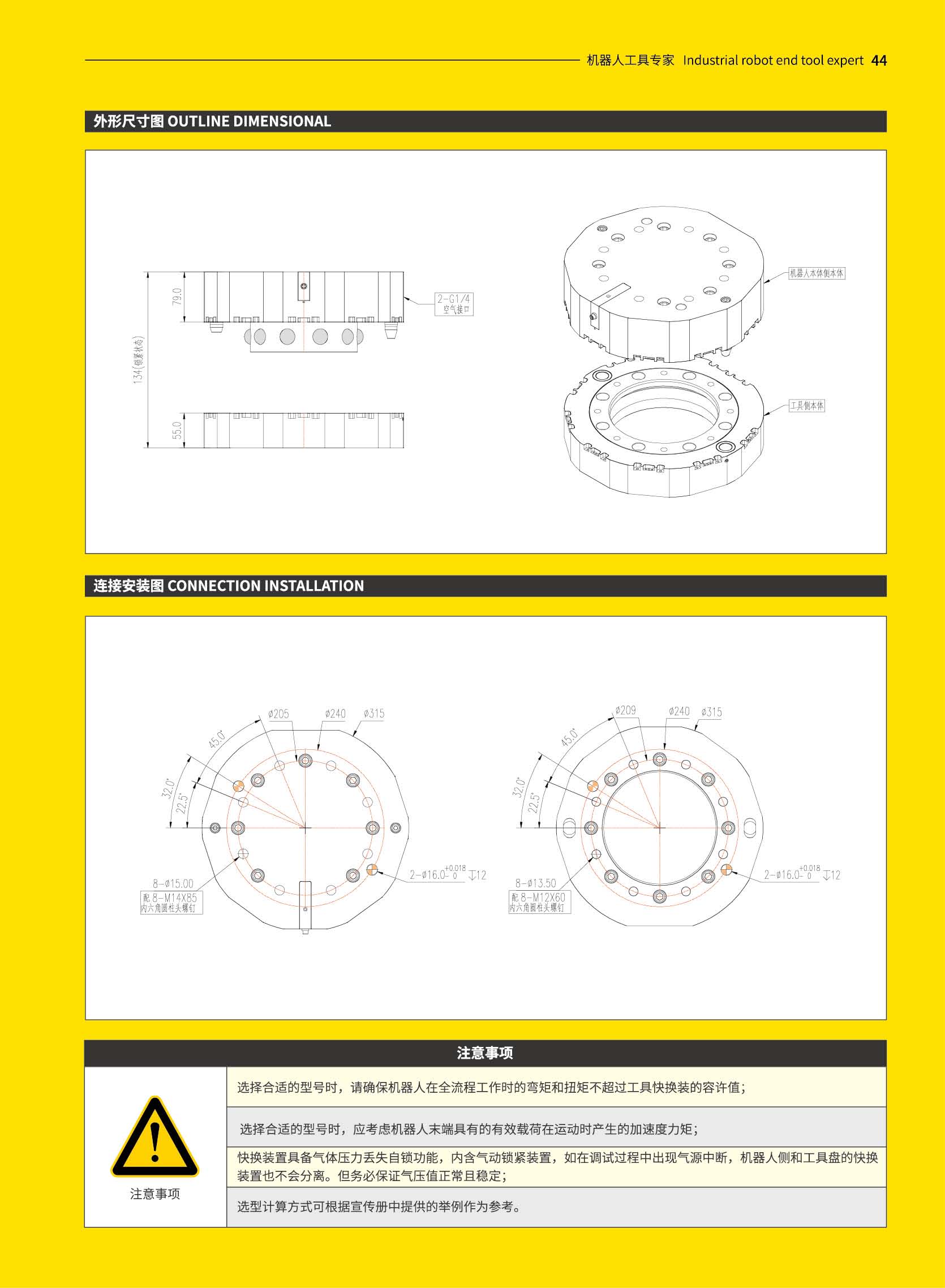

外形尺寸 Housing diameter | φ315mm | ||||||
连接时厚度 Combined profile | 134 mm | ||||||
本体材质 Main body material | 铝合金 Aluminum alloy | ||||||
锁紧机构材质 Locking mechanism material | 合金钢 Steel alloy | ||||||
位置重置精度 Position repeatability | ±0.05mm | ||||||
锁紧方式 Locking mechanism | 钢球锁紧 Locking steel ball | ||||||
工作驱动压力 Air pressure for Working | 0.39~0.75Mpa (4~7kg/cm²) | ||||||
本体重量 Weight | 机器人侧 Robot side | 24 kg | |||||
工具侧 Tool side | 9.6kg | ||||||

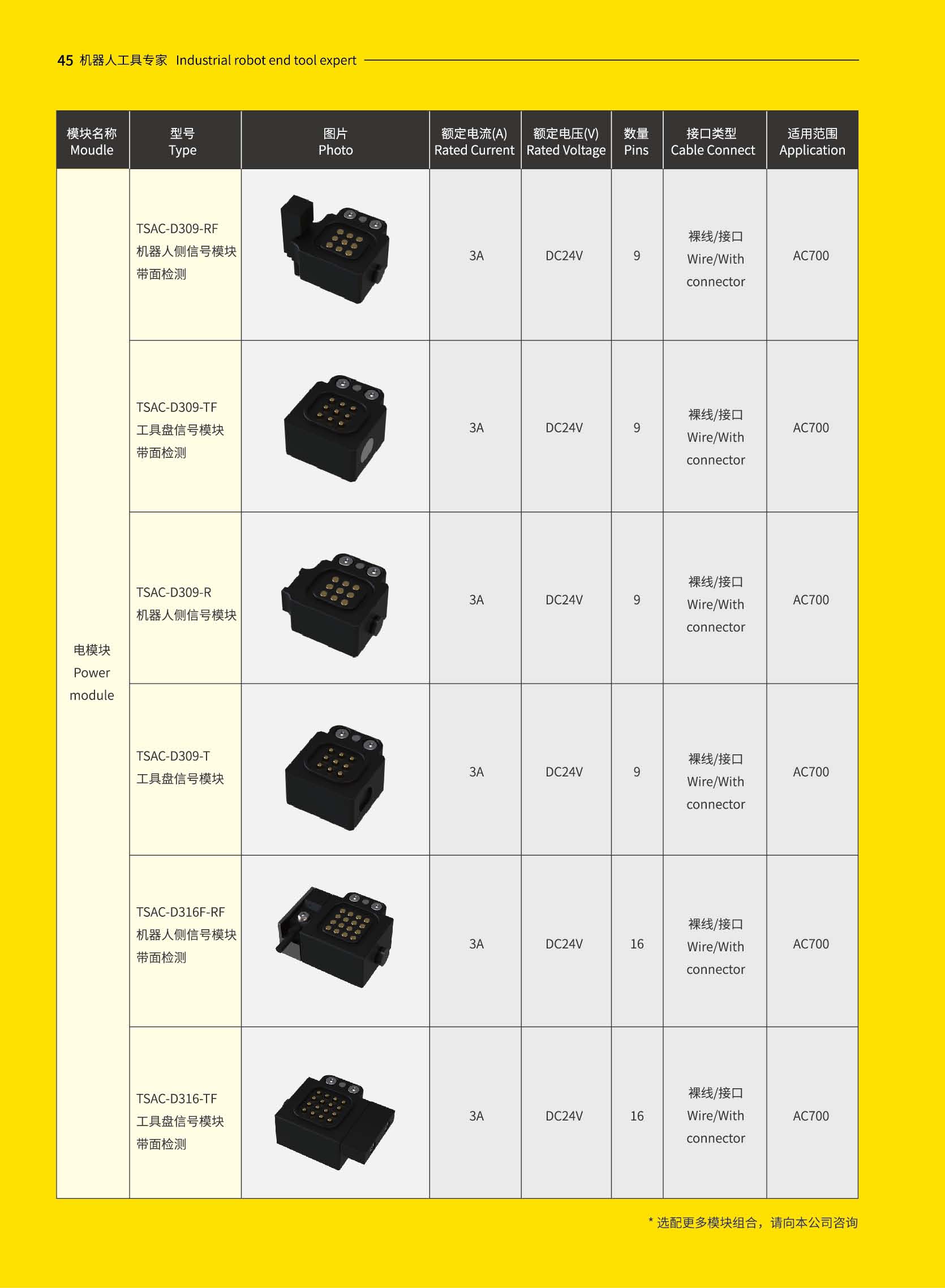

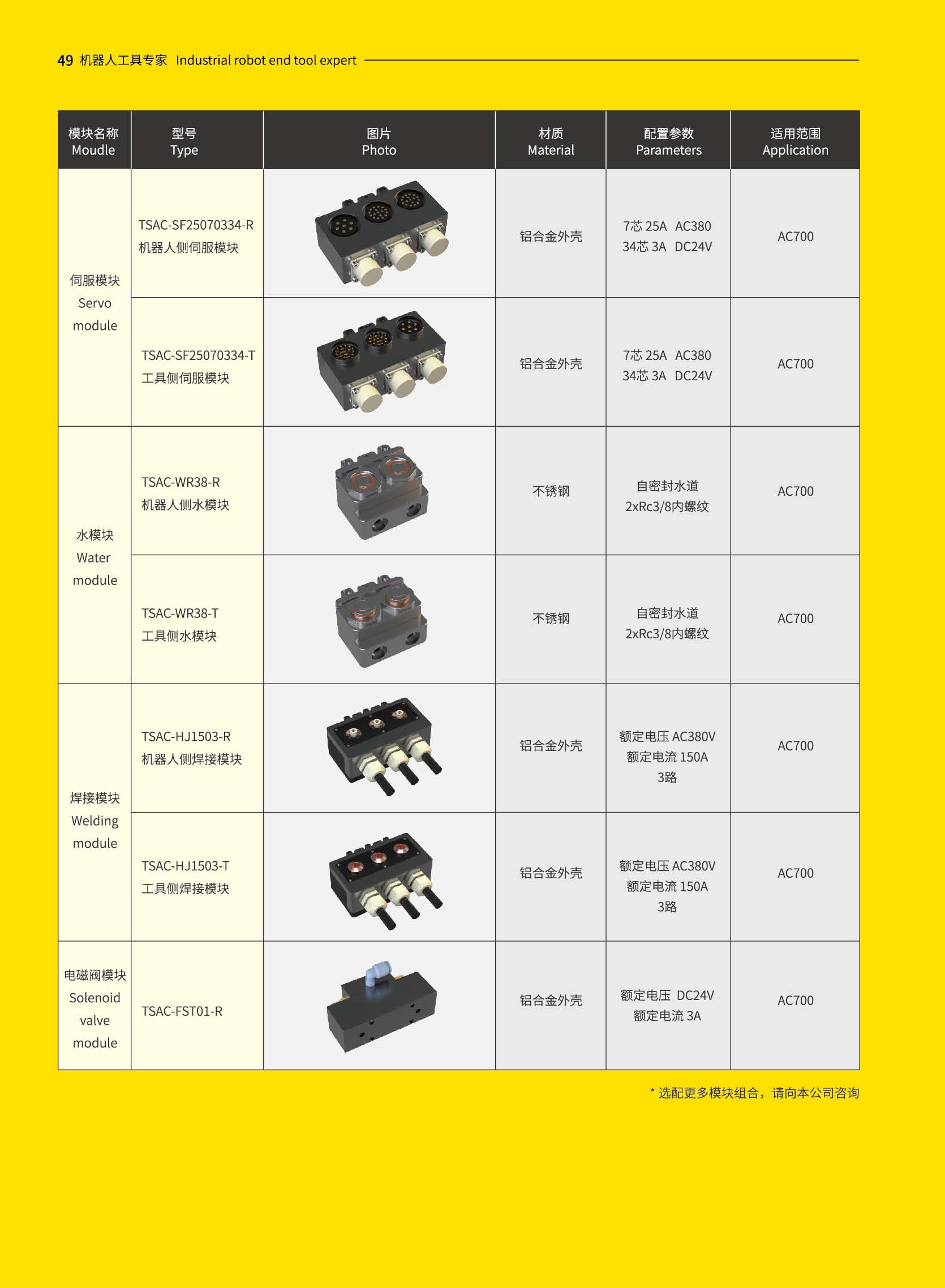

电子信号 Electrical signal | 电流值 Current | 3A | |||||

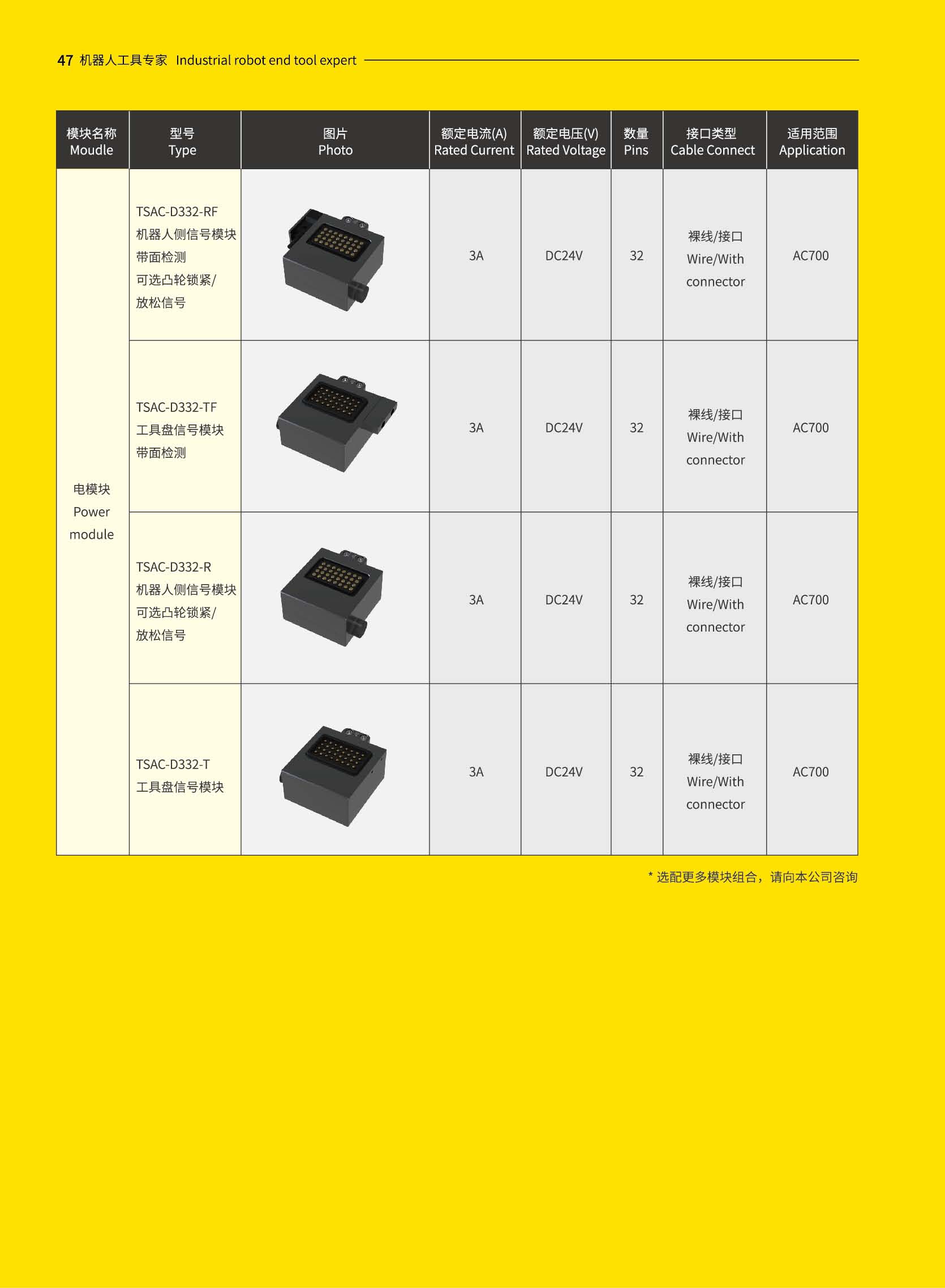

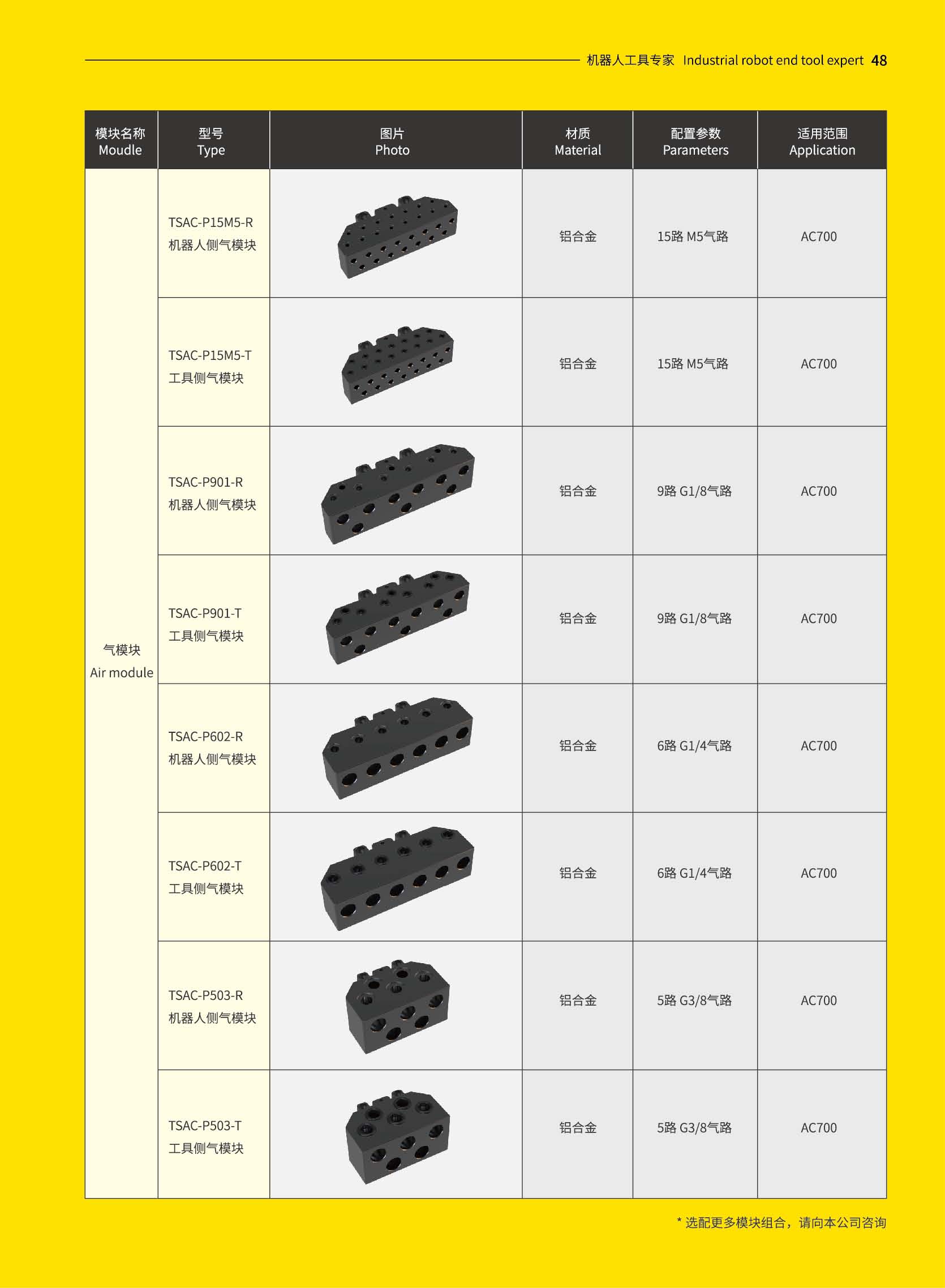

芯数 Quantity | 9/16/24/32针 9/16/24/32pins | ||||||
空气出口 Pneumatic Port | 本体出口数 Own quantity | 无 No | |||||
有效截面积 Effective cross section | 无 No | ||||||
输送信号 Output signal | 凸轮打开 Chuck | 具备 Have | |||||
凸轮收起 Unchuck | 具备 Have | ||||||
连接确认 Face | 选配 Optional | ||||||
环境 Surrounding Condition | 使用温度 Temprature | 0~58°(无冻结 No freeze) | |||||
使用湿度 Humidity | 95% (无结露 No condensation) |
